CO2 Lewis Dot Structure: Electrons, Bonds, and Shape

Quick answer: the CO2 Lewis dot structure at a glance

The preferred co2 lewis dot structure places carbon in the center with double bonds to each oxygen: O=C=O. Count 16 total valence electrons (4 from C + 6 from each O), and distribute them so each oxygen has two lone pairs and carbon has eight bonding electrons around it in two double bonds.

When you calculate formal charges for that arrangement each atom has zero formal charge, so the O=C=O Lewis structure is the dominant or preferred resonance form for neutral CO2. The molecule is linear (180°) because carbon has two electron domains and no lone pairs, and the two bond dipoles cancel so the overall molecule is nonpolar despite polar C=O bonds.

There are valid charge-separated resonance contributors, for example ⁻O–C≡O⁺ and ⁺O≡C–O⁻, but these are minor contributors with net zero charge and are less favorable than the all-zero-formal-charge double-bond structure. They are not separate molecules or ionized CO2; they are alternative resonance drawings chemists can use to represent electron distribution.

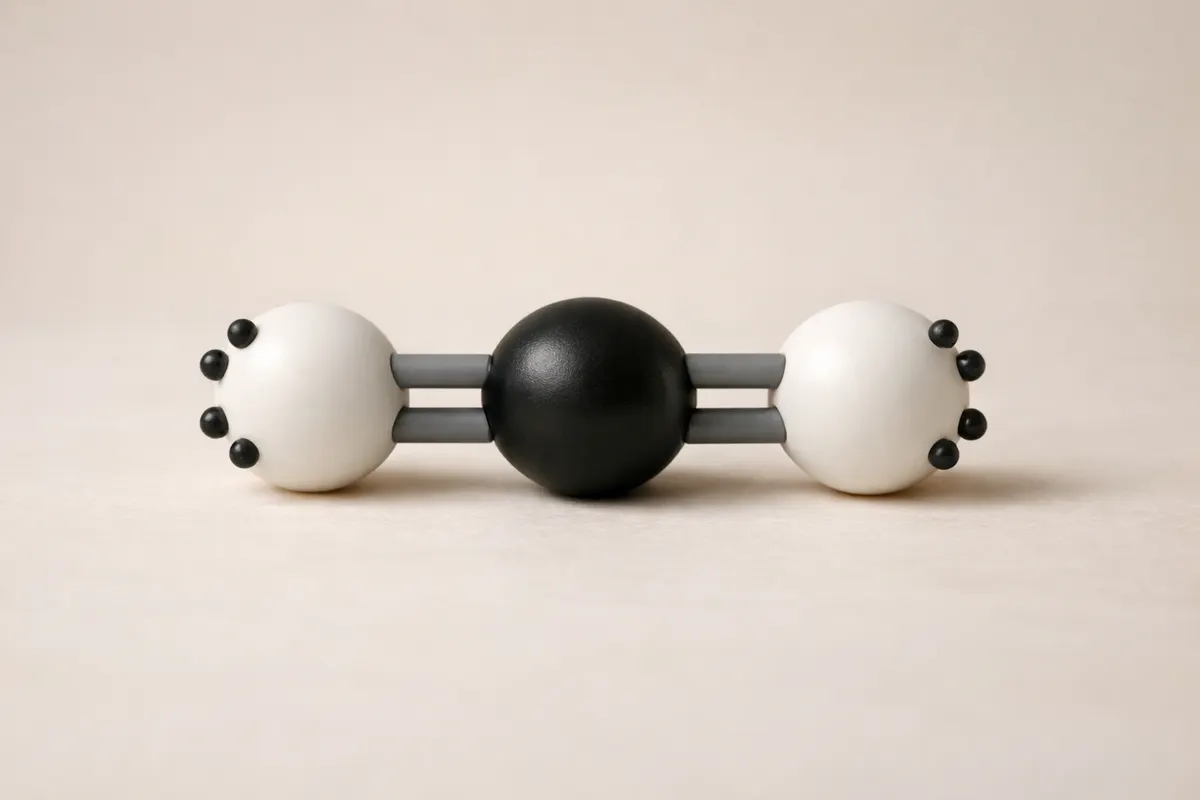

AI-generated schematic illustration, not to scale. O=C=O has two lone pairs on each oxygen and none on carbon.

• Valence electrons: 16 total (4 + 6 + 6).
• Preferred Lewis structure: O=C=O with two lone pairs on each O.
• Formal charges: all atoms zero in the preferred structure.
• Geometry: linear, 180°, two electron domains at carbon.
• Polarity: nonpolar overall despite polar C=O bonds.

What the CO2 Lewis dot structure represents

A Lewis dot structure is a 2D diagram that shows valence electrons, covalent bonds as shared electron pairs, and lone pairs on atoms. For CO2, the picture communicates which electrons are paired between atoms and which remain localized on oxygens. It is a bookkeeping tool that helps predict octet satisfaction, formal charge, and basic bonding patterns.

Drawing CO2 as O=C=O indicates two shared electron pairs (a double bond) between carbon and each oxygen. That drawing implies carbon has eight electrons in its two double bonds, assigning half of them to carbon for formal-charge bookkeeping and each oxygen has four nonbonding electrons (two lone pairs). The Lewis diagram does not show bond lengths, vibrational modes, or the exact electron density distribution around the molecule; those require quantum calculations or experimental measurements.

Resonance is a way to say a single Lewis drawing is an approximation to a true electron distribution that may be better represented as a weighted average of several valid resonance structures. For neutral CO2 the O=C=O form with zero formal charges is the dominant contributor, while charge-separated forms exist as minor resonance contributors, as described in standard texts (see OpenStax 7.4).

• Lewis diagram: shows valence electrons, bonds, and lone pairs.
• Octet goal: each atom is shown with a full valence shell where possible.
• Resonance: multiple valid drawings can contribute to the real electron distribution.
• Limitations: no direct bond lengths, energies, or partial charge magnitudes.

Key clues to verify a correct CO2 Lewis structure

Start by counting valence electrons: carbon contributes 4, each oxygen contributes 6, so CO2 has 16 valence electrons total. That count sets the maximum number of electrons you can place in bonds and lone pairs without invoking formal charges unnecessarily.

Next check octet satisfaction. In the preferred O=C=O diagram, each oxygen has eight electrons (four from two lone pairs plus four shared in the C=O double bond) and carbon has eight (four bonding electrons in each of its two double bonds). If a drawing leaves atoms short of an octet, consider adding bonds rather than moving lone pairs to other atoms.

Formal charge is the deciding factor when multiple Lewis drawings satisfy octets. Calculate formal charge as: valence electrons on the free atom minus (nonbonding electrons + half the bonding electrons). For O=C=O every atom has formal charge zero, which usually makes that diagram the lowest-energy (preferred) Lewis structure.

Watch for symmetry and molecular geometry. Two equal double bonds placed on opposite sides of carbon give a linear arrangement where the dipoles cancel, producing a nonpolar molecule. If a drawing breaks symmetry or creates unequal bond orders, double-check formal charges and whether you introduced a charge-separated resonance form.

• Electron count: 16 total — the primary checkpoint.
• Octets satisfied: both O and C have full octets in O=C=O.
• For these CO2 structures, the octet-satisfying all-zero-formal-charge drawing is preferred.
• Geometry check: two electron domains at C → linear (180°).
• Polarity check: equal C=O bonds on opposite sides → net zero dipole.

Step-by-step: draw and check the CO2 Lewis structure

1) Count valence electrons. Add 4 for carbon and 6 for each oxygen for a total of 16 electrons. This fixed number guides how many electrons you can place as bonds and lone pairs without creating or canceling charges unnecessarily.

2) Arrange the atoms. Put carbon in the center because it is less electronegative than oxygen and can form multiple bonds. Place the two oxygens on either side: O — C — O. Start with single bonds to show connectivity; each single bond uses two electrons, so two single bonds consume 4 of the 16 electrons.

3) Complete the outer octets. The two single C–O bonds use 4 electrons, leaving 12. Place those 12 electrons as three lone pairs on each oxygen. This uses exactly 16 electrons overall. Each oxygen has an octet, but carbon has only four electrons around it at this intermediate stage. Do not add extra electrons to fix that shortfall.

4) Convert a lone pair on each oxygen into a second bonding pair between that oxygen and carbon. The result is O=C=O. There are now 8 electrons in the two double bonds and 8 nonbonding electrons, arranged as two lone pairs on each oxygen. The total remains 16, and all three atoms have octets. Carbon has no lone pairs.

5) Calculate formal charges to confirm. For O=C=O, formal charge on carbon = 4 − (0 nonbonding + 1/2 of 8 bonding) = 4 − 4 = 0. For each oxygen: 6 − (4 nonbonding + 1/2 of 4 bonding) = 6 − (4 + 2) = 0. Zero formal charges on all atoms supports this as the preferred Lewis structure.

6) Consider resonance contributors. You can draw charge-separated resonance structures like ⁻O–C≡O⁺ and ⁺O≡C–O⁻ by moving electron pairs; these are valid resonance contributors but they carry formal charges and are therefore less favored than the all-zero structure. They are useful for showing alternative electron placements, but the weighted average favors the zero-formal-charge O=C=O representation. See formal charge and resonance discussion in OpenStax 7.4 for background.

• Count electrons: C(4) + O(6) + O(6) = 16.
• Place C central, O atoms terminal: O — C — O.
• Give terminal oxygens lone pairs then add bonds until C has an octet.
• Form two C=O double bonds so each atom has an octet and formal charges are minimized.
• Recognize charge-separated resonance forms exist but contribute less to the real structure.

Examples

Example 1 — Preferred Lewis drawing (all-zero formal charges): Draw carbon in the center and place a double bond to each oxygen. Then place two lone pairs on each oxygen. Written succinctly as: O with two lone pairs = C = O with two lone pairs. In formal-charge arithmetic this arrangement gives zero on carbon and zero on each oxygen, so it is the dominant Lewis structure.

Example 2 — Charge-separated contributors: starting from O=C=O, move one bonding pair from a C=O bond onto that oxygen, making a single bond and a negative formal charge. At the other oxygen, move a lone pair into the C–O bond, making a triple bond and a positive formal charge. The result is ⁻O–C≡O⁺; reversing the sides gives ⁺O≡C–O⁻. Both retain 16 electrons and octets. The singly bonded oxygen has three lone pairs, the triply bonded oxygen has one, and carbon remains neutral.

Example 3 — Why the double-bond picture matters for shape and polarity: With two identical C=O double bonds arranged opposite each other, the two bond dipoles point in opposite directions and cancel. That symmetry gives an overall nonpolar molecule and predicts a zero net dipole moment for the ideal linear geometry. If you instead drew an asymmetric resonance structure, the drawing would show nonzero formal charges and an imbalanced electron picture, but the true molecule is better represented by the weighted average dominated by the symmetrical O=C=O form.

A common counting trap is to count shared electrons differently without stating why. For carbon’s octet, count all eight electrons in the four bonding pairs around C. For its formal charge, assign half those bonding electrons to C, giving four. For the total electron budget, count each pair once for the molecule, not once for each atom it touches. These are three different bookkeeping questions about the same drawing.

• Preferred: O=C=O with two lone pairs on each O (zero formal charges).
• Minor contributors: ⁻O–C≡O⁺ and ⁺O≡C–O⁻ — valid but less favorable.
• Shape: linear (180°) because carbon has two electron domains and no lone pairs.
• Polarity: bond dipoles cancel → molecule is nonpolar overall.

Limitations: what the Lewis structure can and cannot tell you

Lewis diagrams are valuable for teaching and quick prediction, but they are simplified. They show how valence electrons pair and whether octets are satisfied, and they can help identify low-energy resonance forms using formal charge as a guide. They do not directly provide quantitative bond energies, bond lengths, vibrational frequencies, or accurate partial charges beyond the crude formal-charge bookkeeping.

Resonance contributors are drawings used to represent the true electron distribution; the real electronic structure is a resonance hybrid — a weighted average of contributors. For CO2, the O=C=O form with zero formal charges is the dominant contributor. Charge-separated forms like ⁻O–C≡O⁺ and ⁺O≡C–O⁻ are valid as minor contributors but are less stable because they introduce formal charges. For a textbook explanation of formal charge and resonance, see OpenStax 7.4: https://openstax.org/books/chemistry-2e/pages/7-4-formal-charges-and-resonance.

A Lewis structure does not supply measured bond lengths, vibrational frequencies, or the exact electron-density distribution. Those questions require appropriate experimental evidence or quantum-chemical calculations. For a classroom drawing, the relevant checks are narrower: total electrons, octets, formal charges, electron domains, and the symmetry of the molecule.

• Lewis structures predict bonding patterns and formal charges but not exact bond energies or electron densities.
• Resonance contributors are conceptual; the real structure is a weighted hybrid.
• Charge-separated forms for CO2 exist on paper but contribute less than the all-zero form.
• Confirm detailed properties (bond lengths, energies) with spectroscopy or calculations.
